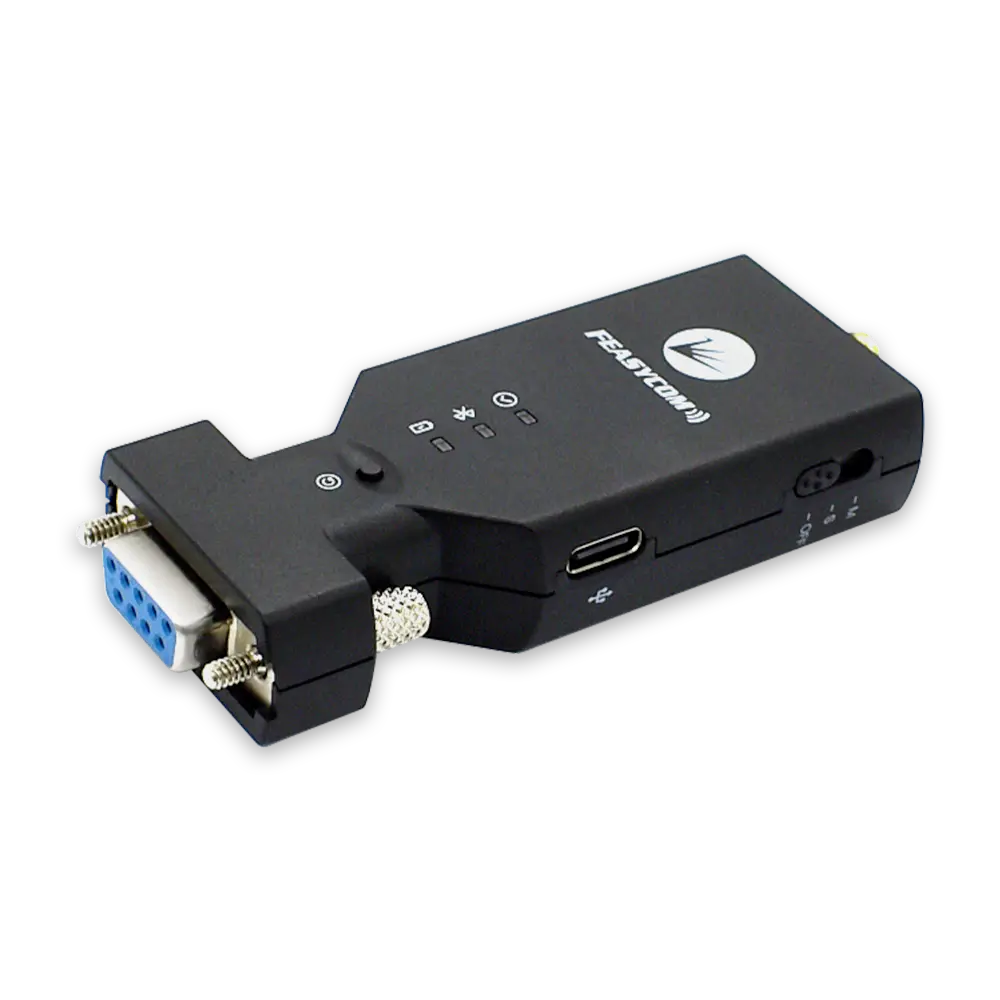

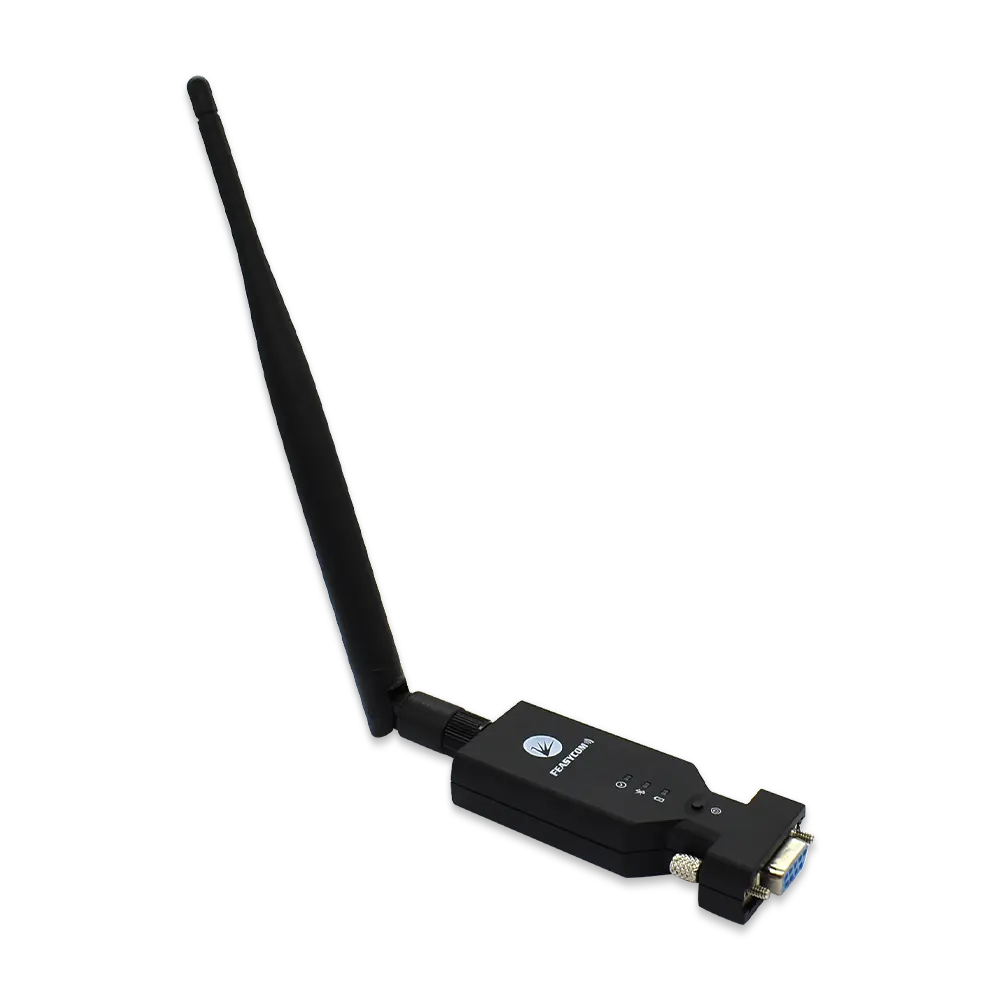

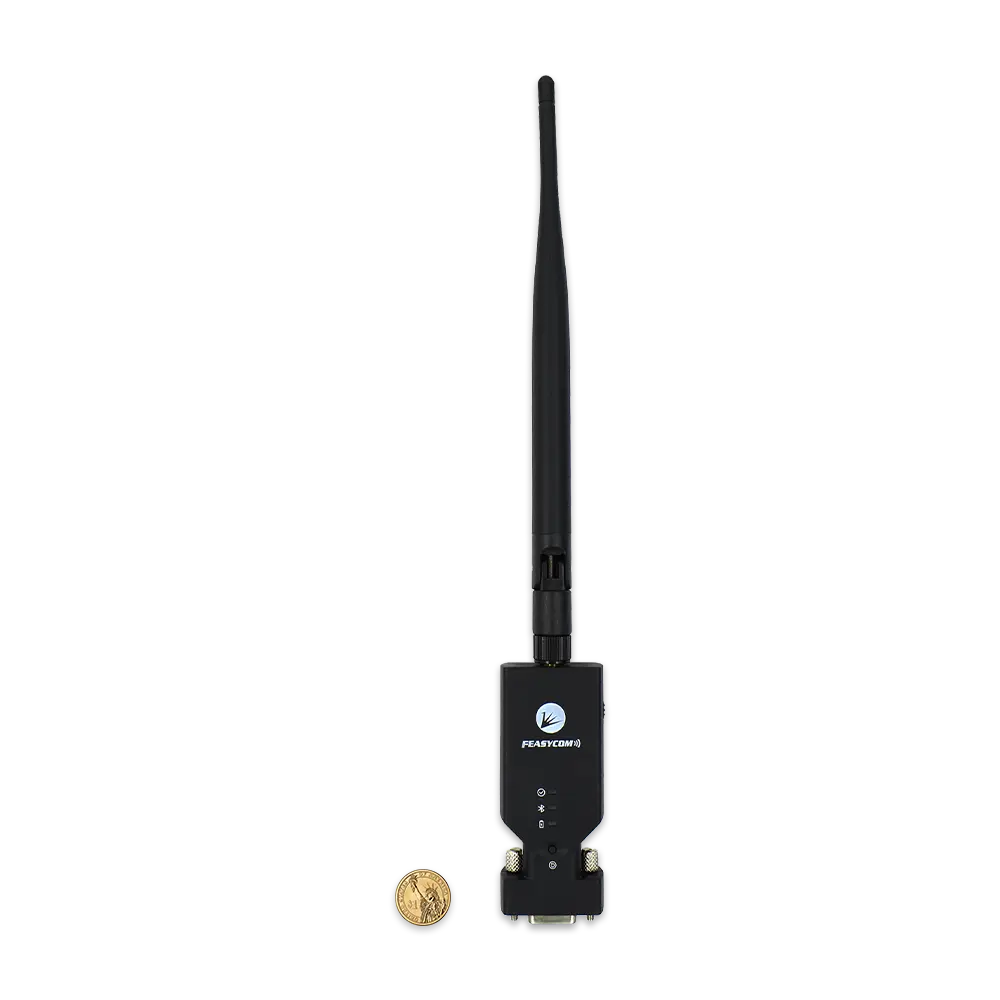

FSC-BP301

The main function of this product is to replace the traditional RS232 serial communication cableand convert the wired serial connection into a wireless Bluetooth serial connection, therebyrealizing wireless serial communication.



This product can be connected to any DB9 male interfacedevice with a standard RS232 serial port through the DB9 female interface, and can be usedfor wireless serial communication with USB Bluetooth adapters with Bluetooth SPP communication functions, notebook computers, handheld computers, mobile phones and other devices.
wishlist Share Link
wechat wechat wechat
$19.00
Features
Applications
Specifications
Downloads

Features

  • RS232 Interface
  • Dual-mode Bluetooth 5.0, supports SPP + GATT protocols
  • Supports both master and slave modes
  • Configurable via AT commands
  • Long-range communication

Applications

Data Transmission
USB Adapter

Specifications

Bluetooth specification

 V5.0

Bluetooth protocols

SPP,GATT

Interface

 RS232-UART

Battery

Built-in lithium battery (500mAh)

Baud rate

1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600bps

Antenna gain

5 dBi

Communication distance

80 m(open environment)

TX power

7.5 dBm

Working current

23 mA

Battery capacity

500 mAh

Dimension

121 * 34 * 15.8mm

Product weight

62g

Baud rate

115200 bps



Downloads

User Guide
