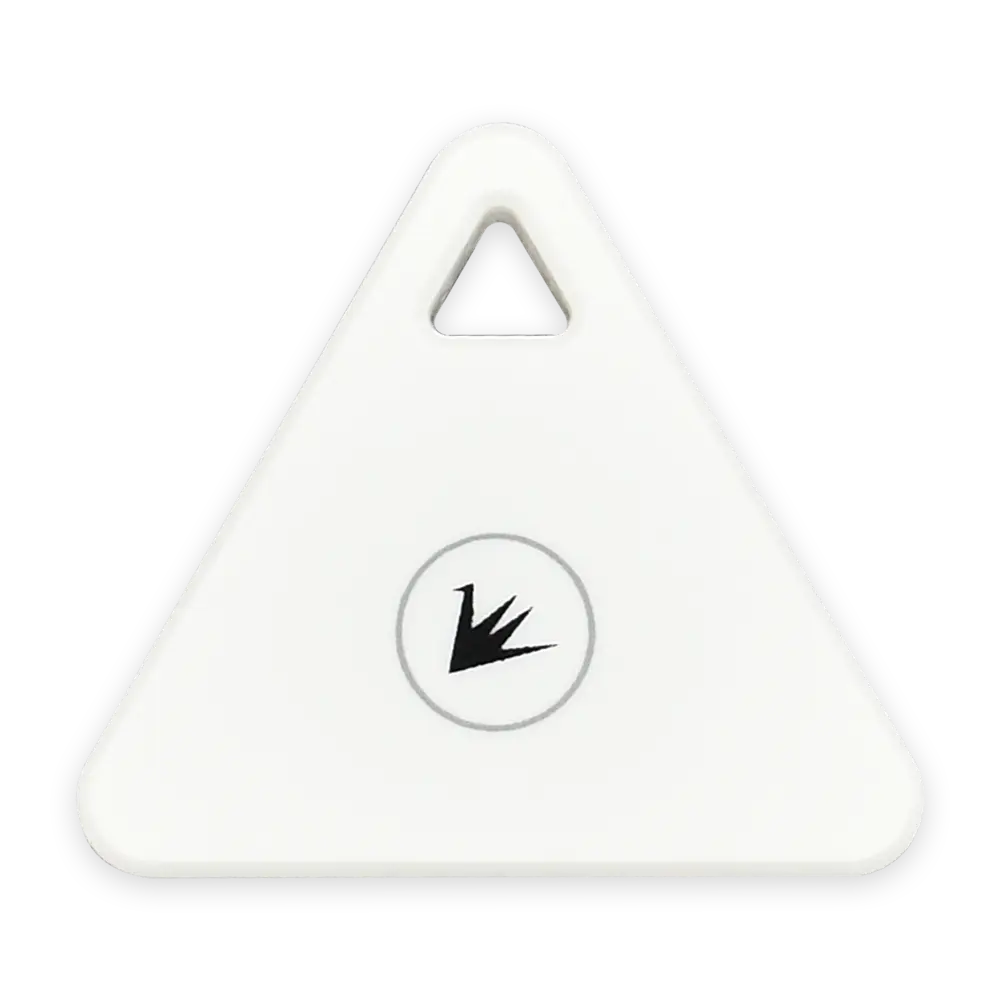

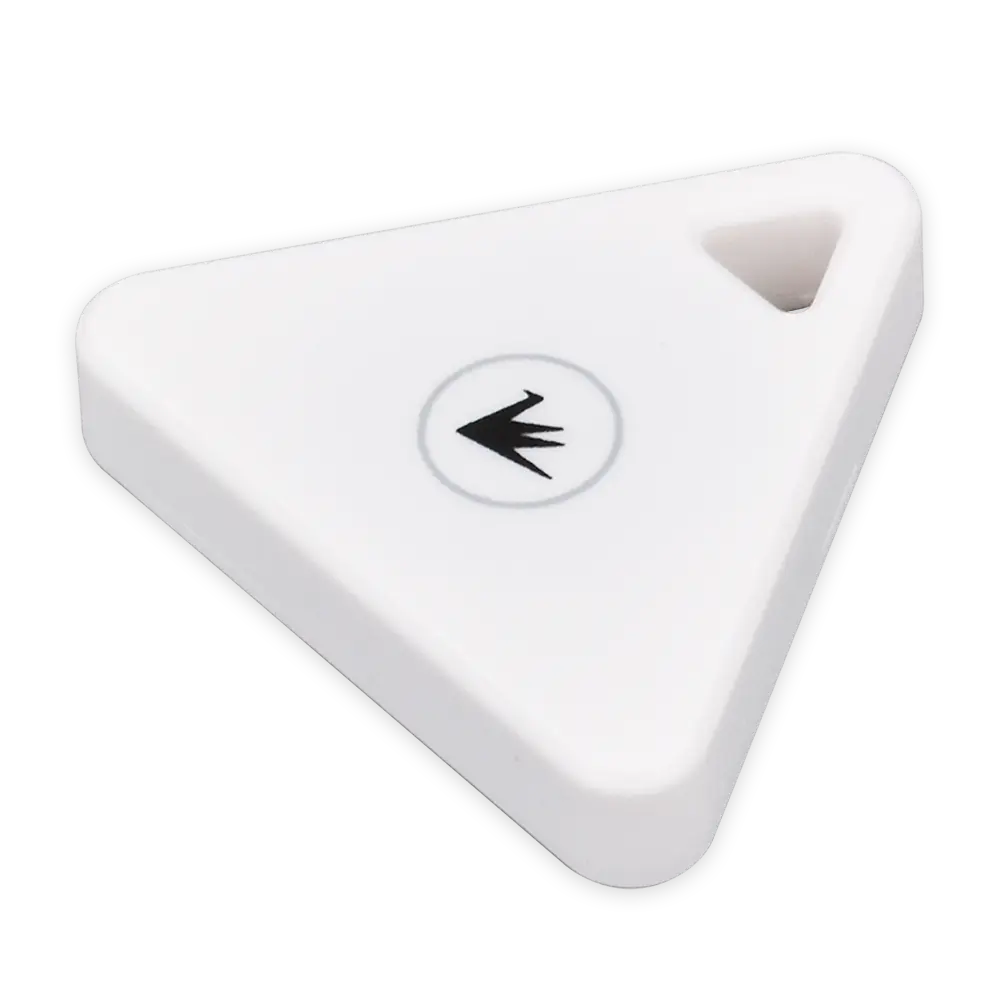

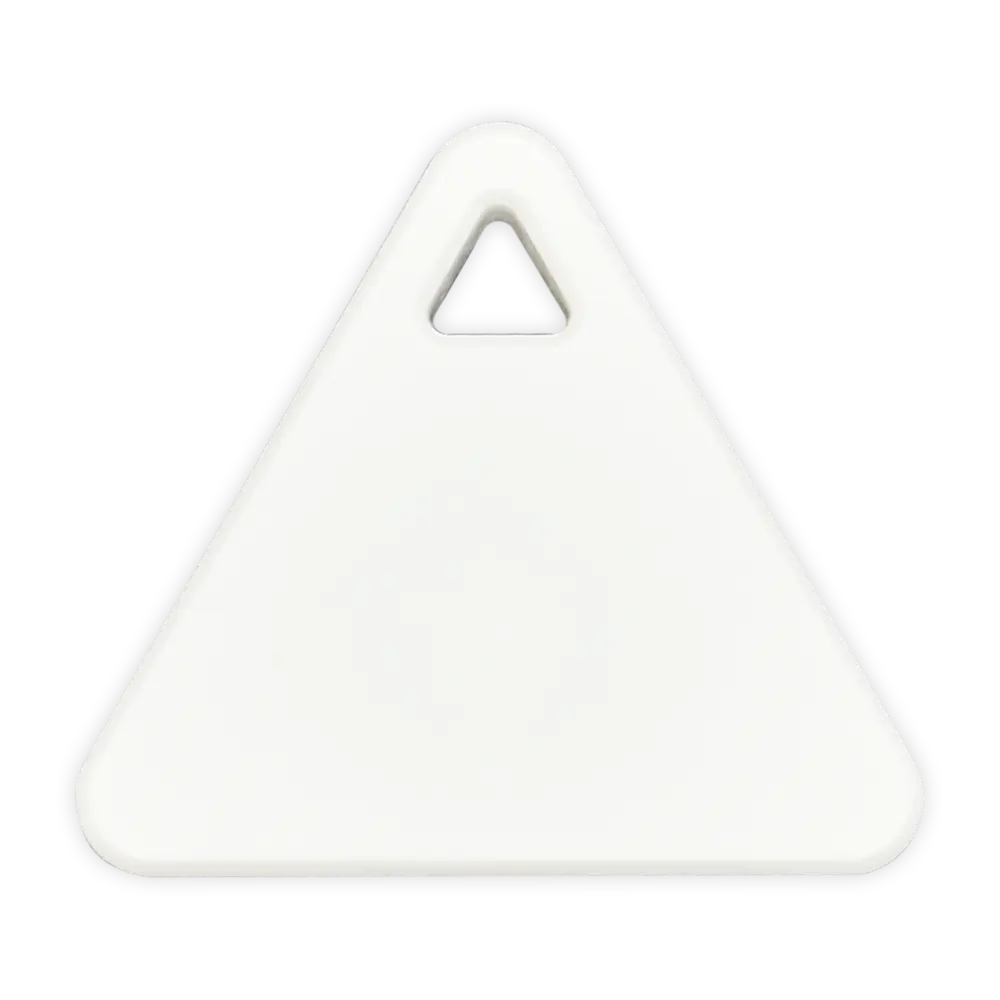

FeasyBeacon FSC-BP103C is a battery-powered Bluetooth 5.1 Low Energy proximity-beacon, it simultaneously supports iBeacon, Eddystone (e.g. URL, UID, TLM), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, 等. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).
| Item | Description |
| Advertising Format | Eddystone (URL/ UID/TLM), iBeacon, AltBeacon |
| Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
| Advertising Interval | Default 1300 ms, range from 0 ms to 10000 ms |
| Security | Access password required, Default Pin Code 000000 |
| Max Number of Broadcast | 10 Slots configurable advertising frames |
| Default Broadcast Interval | 1300 ms for iBeacon & Eddystone |
| System Compatibility | iOS 7.0+, Android 4.3+ |
| Advertising Distance | Up to 450m (open area) |
| Firmware Upgrading | OTA (upgrade firmware over the air) |
| Item | Description |
| 芯片组 | DA14531 |
| Bluetooth Version | 蓝牙 5.1 |
| TX power | -19.5 dBm 到 + 2.5 DBM |
| Antenna | PCB Coil antenna |
| G-Sensor | Optional |
| Power Supply | CR2032 |
| Power On | Long press central area for power on / off |
| Battery Life | 3 Year (ADV Interval = 1300 ms; TX Power = 0 DBM) |
| Material | ABS plastic |
| Color | White or customized |

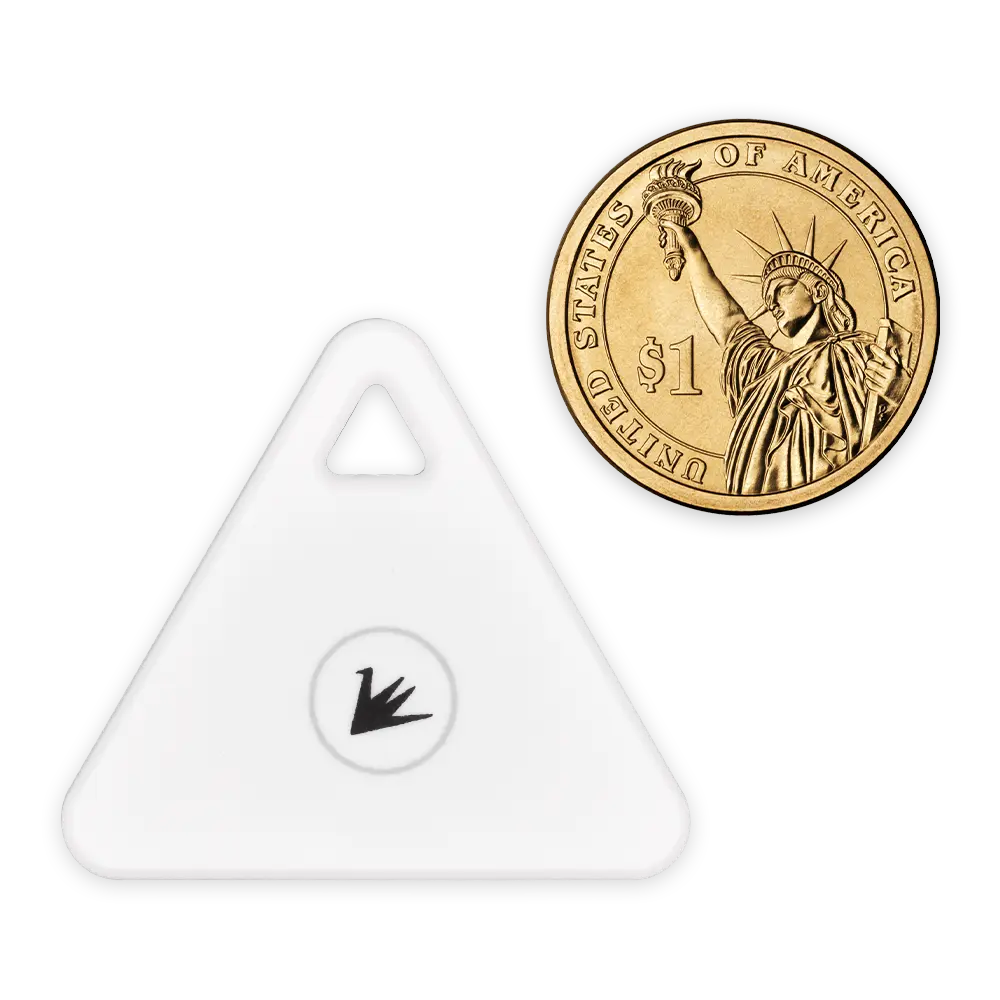

| Size | 33.8 * 35.8 * 7.8 mm |
| Net weight | 7.46 g |
| Protection | IP66 |
| 工作温度 | -20°C to +60°C |
| 认证 | / |
