FeasyBeacon FSC-BP109 is a USB powered super long range beacon. It simultaneously supports iBeacon, Eddystone (e.g. URL, UID), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames. Transmit distance up to 4000m.
FeasyBeacon Super BP109 is designed to solve the poor cover range problem, suitable for application scenarios like stadium, museum, exhibition, hotel, restaurant, 等.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor and Outdoor Location, Asset Tracking, Vehicle Tracking, 等. Meanwhile, FeasyBeacon SDK compiled app is available to download from both the iOS and Android platform (search ‘FeasyBeacon’ to download).
| Item | Description |
| Advertising Format | Eddystone (URL/ UID), iBeacon, AltBeacon |
| Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
| Advertising Interval | Default 100 ms, range from 100 ms to 2000 ms |
| Security | Access password required, Default Pin Code 000000 |
| Max Number of Broadcast | 10 Slots configurable advertising frames |
| Default Broadcast Interval | 100 ms for iBeacon & Eddystone |
| System Compatibility | iOS 7.0+, Android 4.3+ |
| Advertising Distance | Up to 4000m (open area) |
| Firmware Upgrading | OTA (upgrade firmware over the air) |
| Item | Description |
| 芯片组 | Qualcomm CSR8811 |
| Bluetooth Version | 蓝牙 4.2 |
| TX power | +18.5 DBM |
| Antenna | Whip Antenna (SMA interface) |
| Power Supply | 5V USB |
| MCU Core | ST ARM 32-bit Cortex-M4 CPU |
| Material | ABS plastic |
| Color | Black, or customized |

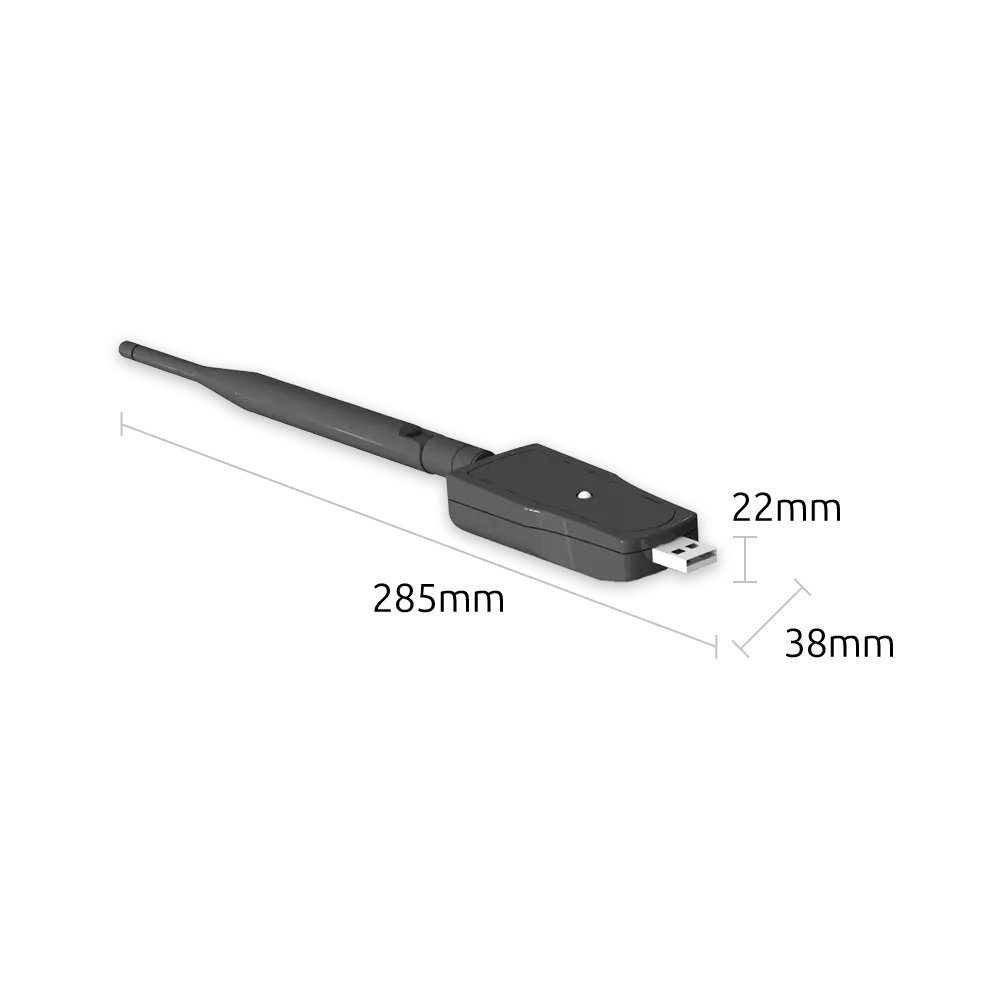

| Size | 285(L)*38(W)*22(H)mm |
| Net weight | 54 g |
| Protection | IP40 |
| 工作温度 | -20°C to +85°C |
| 认证 | CE, ROHS, FCC |
