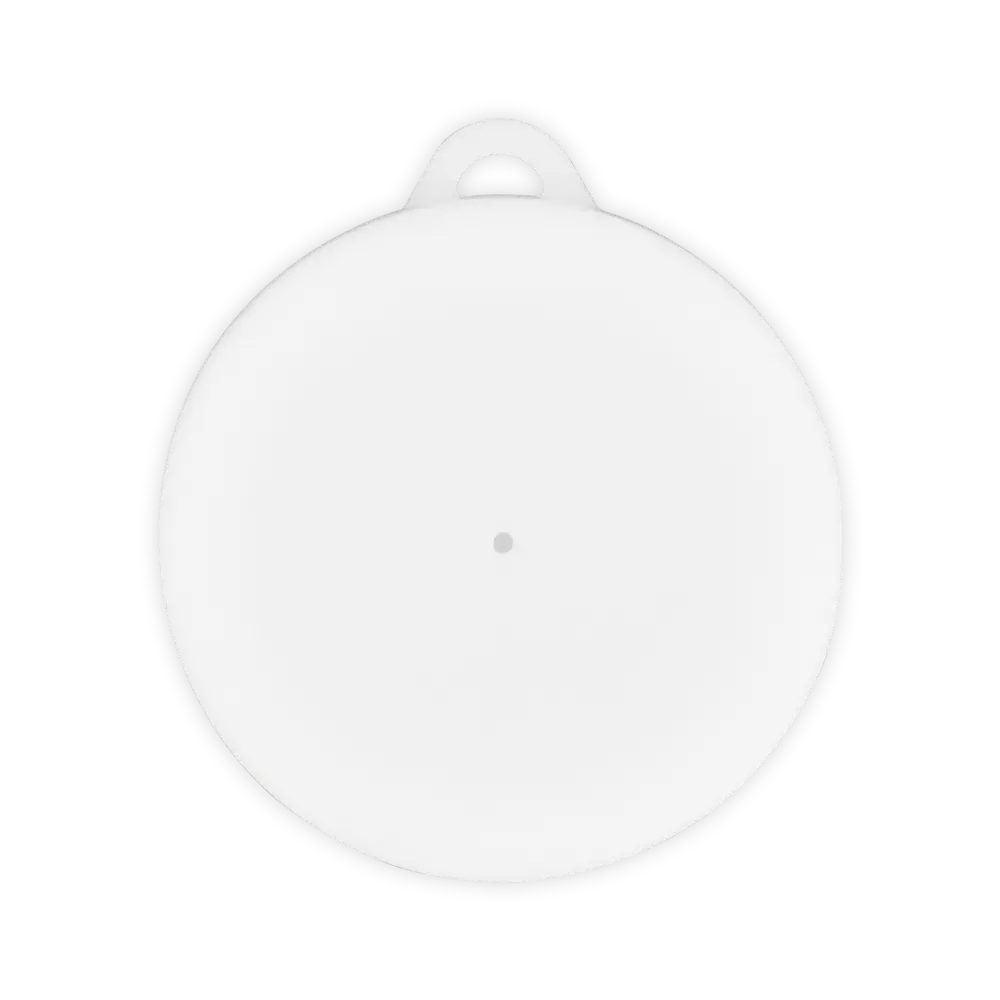

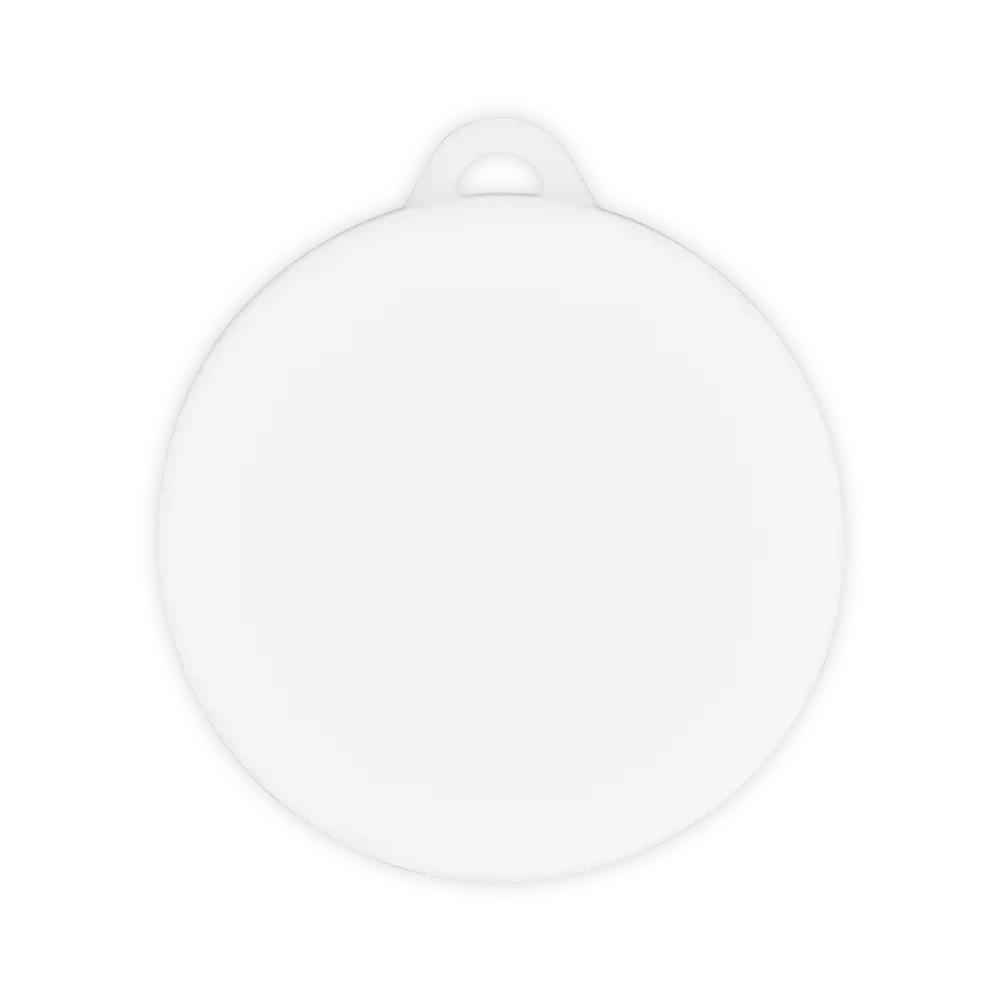

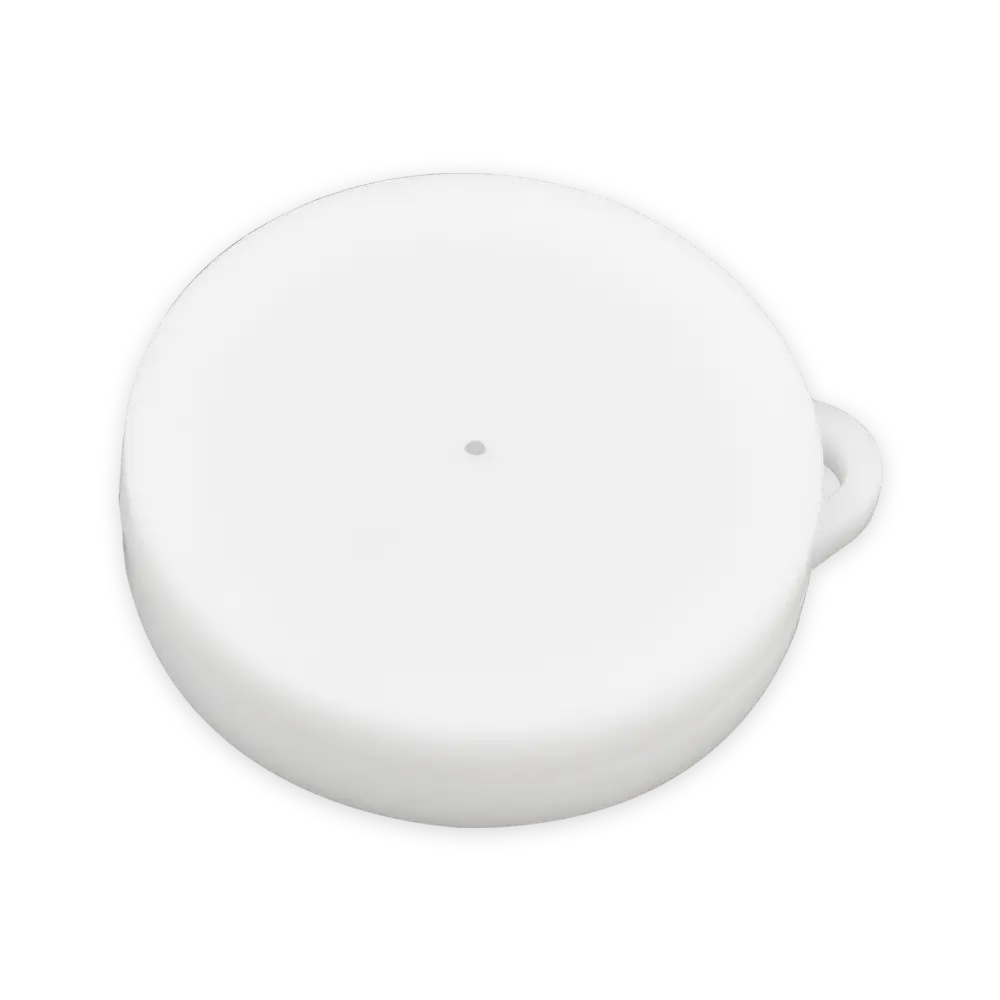

FSC-BP121 a Bluetooth 5.1 Temperature and Humidity Sensor Beacon. This product can help to monitor real-time environmental temperature and humidity near the beacon. Operating with Feasycom’s FeasyMonitor APP and Gateway Device FSC-BP201, users can take advantage of the remote temperature & humidity monitoring. This product uses CR3032 battery as the power source, the battery life can reach up to 280 days.
Besides, this product can also act as a regular Bluetooth beacon, simultaneously supports iBeacon, Eddystone (URL and UID), AltBeacon profiles. Working with FeasyBeacon APP, users can set up the broadcast data, broadcast interval, transmit power, 等. Supports up to 10 slots advertising frames.
With the available FREE iOS & Android FeasyBeacon SDK, users can develop their own applications easily.
| Item | Description |
| Advertising Format | FscBeacon, Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon |
| Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
| Advertising Interval | Default 1300 ms, range from 100 ms to 10000 ms |
| Security | Access password required, Default Pin Code 000000 |
| Max Number of Broadcast | 10 Slots configurable advertising frames |
| Default Broadcast Interval | 1300 ms for iBeacon & Eddystone |
| System Compatibility | iOS 10.0+, Android 7.0+ |
| Advertising Distance | Up to 200m (open area) |
| Firmware Upgrading | OTA (upgrade firmware over the air) |
| Power ON/OFF | Long press central area for power on / off |
| Status Indication | LED blink |
| Item | Description |
| 芯片组 | DA14531 |
| Bluetooth Version | Bluetooth 5.1RIGT102WDP8 |
| TX power | -19.5 dBm 到 +2.5 DBM |
| Temperature Range | -20°C to +60°C |
| Humidity Range | 0 ~ 100% RH |
| Typical Humidity Accuracy | 2 % RH |
| Typical Temperature Accuracy | 0.2 ℃ |
| LED | optional |
| Button | optional |
| Waterproofing class | IP66 |
| Power Supply | CR3032 |
| Battery Life | 280 days (ADV Interval = 1300 ms; TX Power = 0 DBM) |
| Material | ABS plastic |

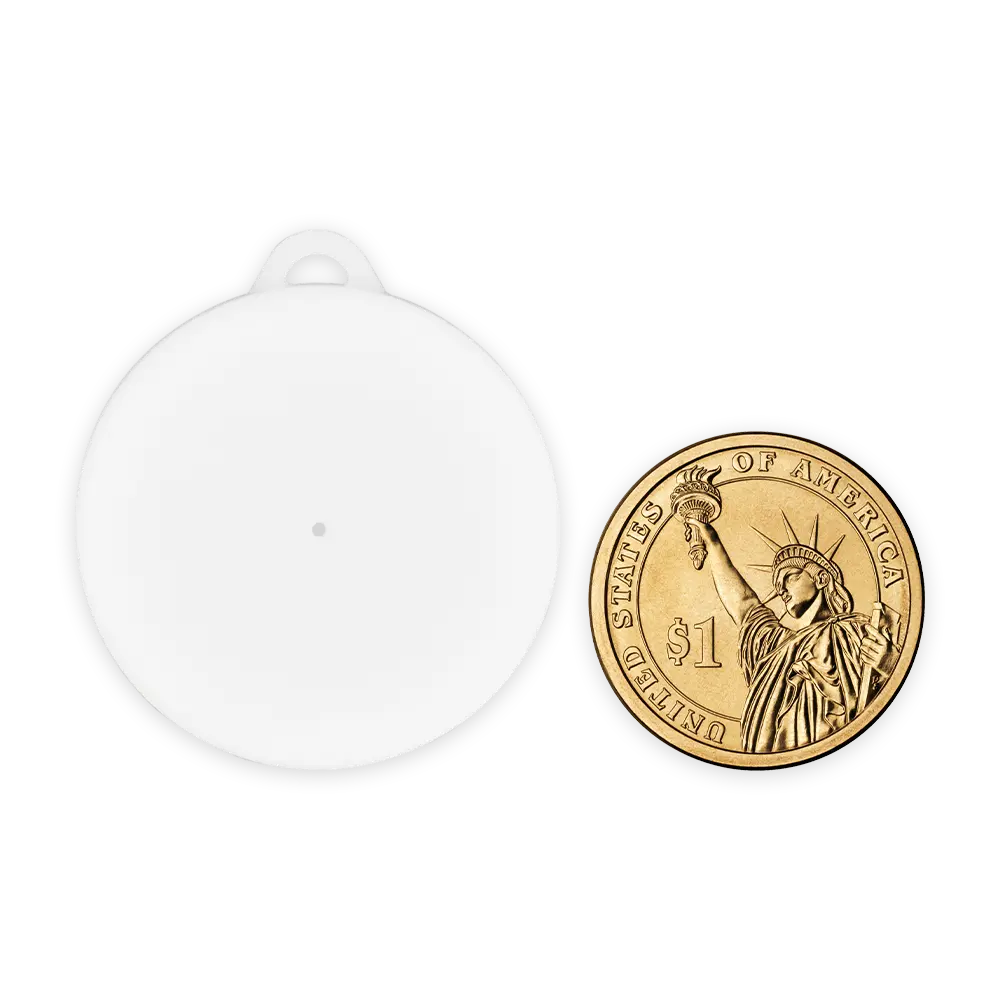

| Size | Φ38mm, H:9.6mm |
| Net weight | 8.45 g |
