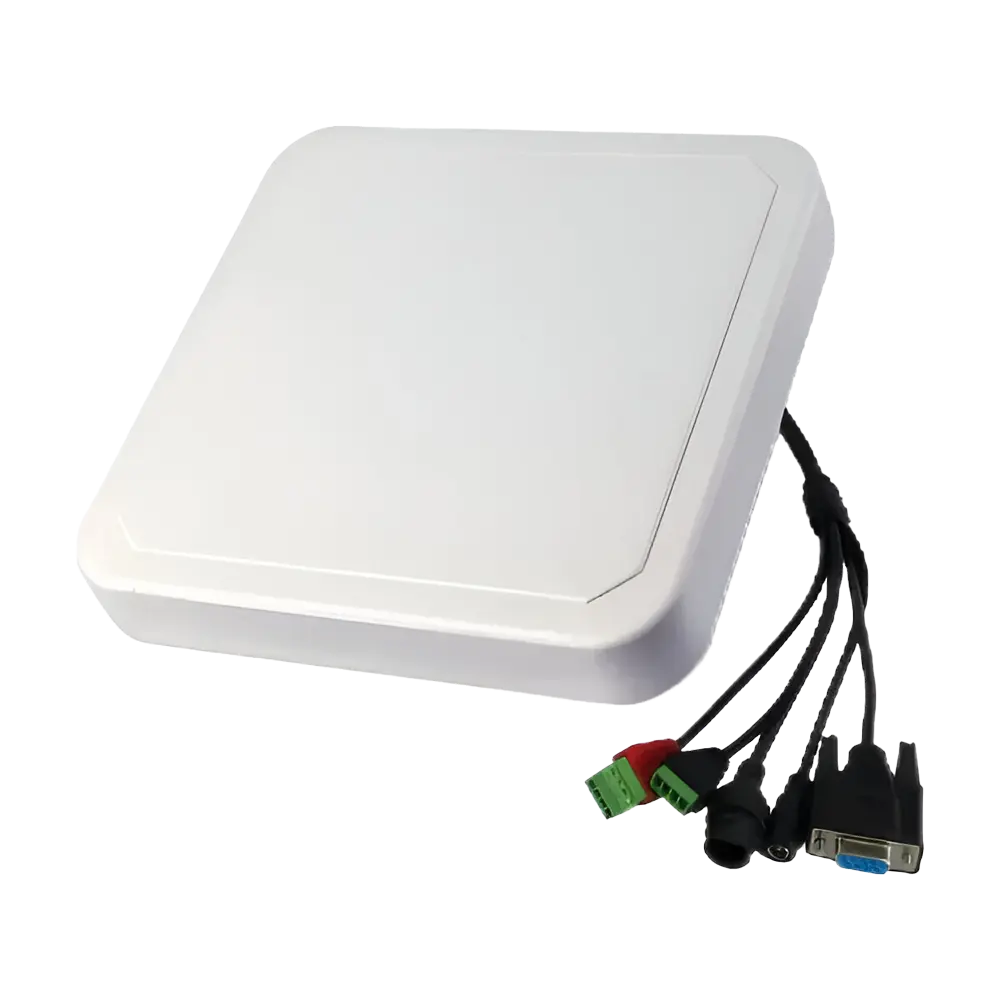

FSC-RDO1LI is a UHF RFID reader with integrated 9dBic antenna. It is full compatible with IS018000-6C protocol. The working frequency band covers CHN 920MHz~925MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz ~ 868MHz. For the output power 0dBm ~ 33dBm is optional. It has the advantages of high portability, long recognition distance, fast reading speed, high accuracy, strong anti-interference ability, excellent protection performance and easy to installation.
Compared with the traditional fixed reader, this reader device has obvious advantages in terms of convenience and integration efficiency, so that customers do not need to consider the coordination of the reader and the antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.
| Hardware, OS and Firmware Management | |
| Processor | ARM Cortex-M3 108MHz |
| Storage | Flash 128KB |
| Firmware upgrade | Demo software/Remote upgrade |
| SDK | Windows platform– .Net / .Net core / C++ / Java SDK |
| Physical Parameters | |
| Sizes | 258mm(L)*258mm(W)*36mm(H) |
| Weights | 1.2KG |
| Housing material | Aluminum+ABS |
| RFID | |
| Chip | Impinj Indy E710 |
| Air protocol | ISO/IEC 18000-6B, 6C/EPC C1Gen2 |
| 频率 | CHN: 920MHz～925MHz, 840MHz～845MHz FCC: 902MHz～928MHz ETSI: 865MHz～868MHz |
| Built-in antenna | Circular polarization 9dBi, VSWR≤1.3：1 |
| Output power | 33dBm±1 dBm |
| Channel bandwidth | ＜200KHz |
| Frequency stability | ≤±10ppm |
| Reading range | 0m～30m (related to factors such as transmit power, antenna type, tag type and application environment) |
| Write distance | 0m～15m (related to factors such as transmit power, antenna type, tag type and application environment) |
| Label recognition speed | ＞800times/second |
| Features | Support RSSI/support multiple tags/intensive reading and writing/online upgrade/tag data filtering |
| Operating mode | Fixed frequency/frequency hopping selectable |
| Connection&Environmental Parameters | |
| Communication interface | RJ45, RS-232, RS-485, Wiegand 26/34/66 |
| I/O interface | 1 input, 1 12V, 2 5V output |
| Power supply | DC 12V/3.33A |
| 工作温度 | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Operating humidity | 5%RH～95%RH (non-condensing) |
| Protection class | IP65 |
