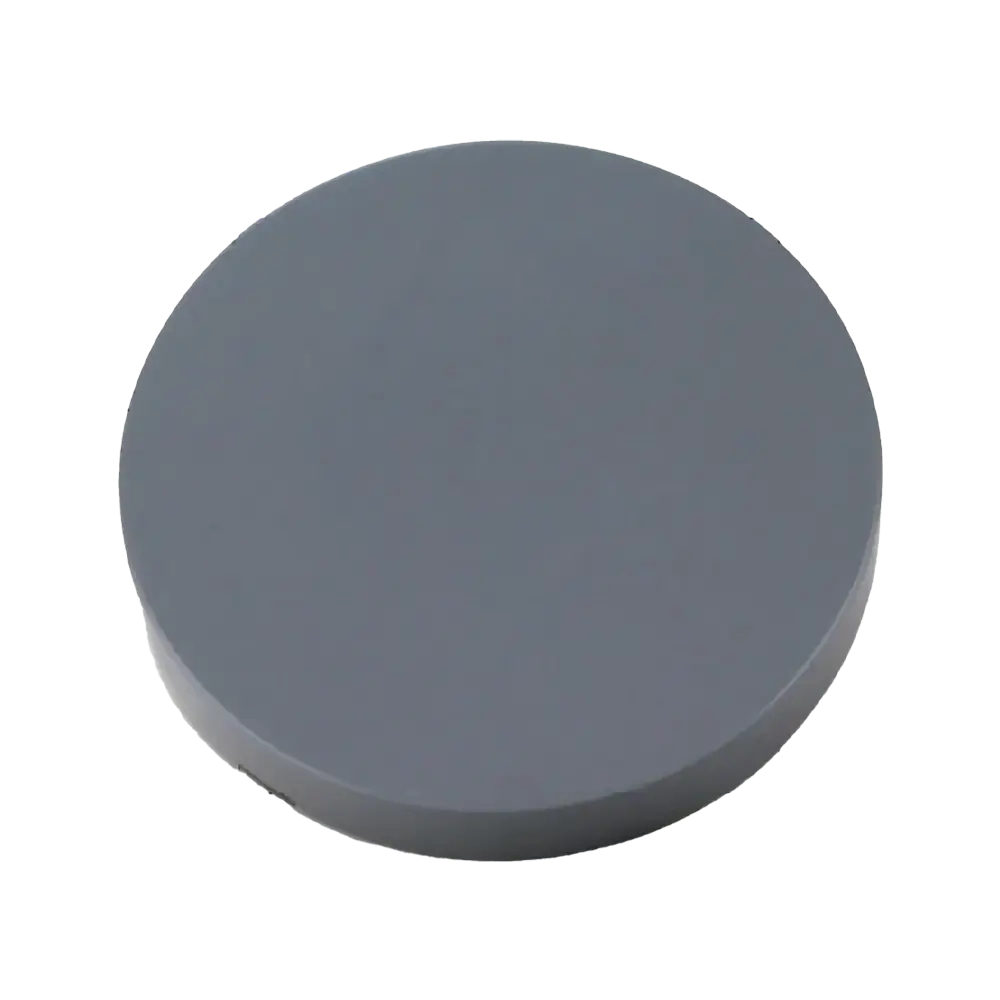

FSC-RT026 is dedicated to the goods positioning. It has a good performance of far reading distance, compressive and impact resistance, high mechanical strength and easy to install, especially suitable for a variety of tobacco tray positioning, grain management, conveniently used in all the RFID positioning management applications.
| Performance Features | |
| Frequency range | 920 - 925 MHz |
| Sensitivity | Front-17dBm |
| Chip | ALIEN H3 |
| Chip protocol | EPC Class-1 Gen2 |
| Protocol supported | ISO 18000-6C, EPC global C1Gen2 |
| Function | Read / Write |
| Chip Features | |
| E P C | 96 Bits |
| Chip memory | 512 User Bits |
| T I D | 64 bits |
| Access password | 32 bits |
| Kill password | 32 bits |
| Anti-interference | Strong |
| Data retention | 10 years |
| Write endurance | 10,000 cycle |
| Mechanical Features | |
| Size | 100mm*15mm（with adhesive） |
| Material of shell | Ceramic |
| Color | Black (or customized) |
| Weight | 278g |
| Installation method | buried in the ground and keep parallel to the floor |
| Protection class | IP65 |
| Operating Temperature | -40℃ to +250℃ |
