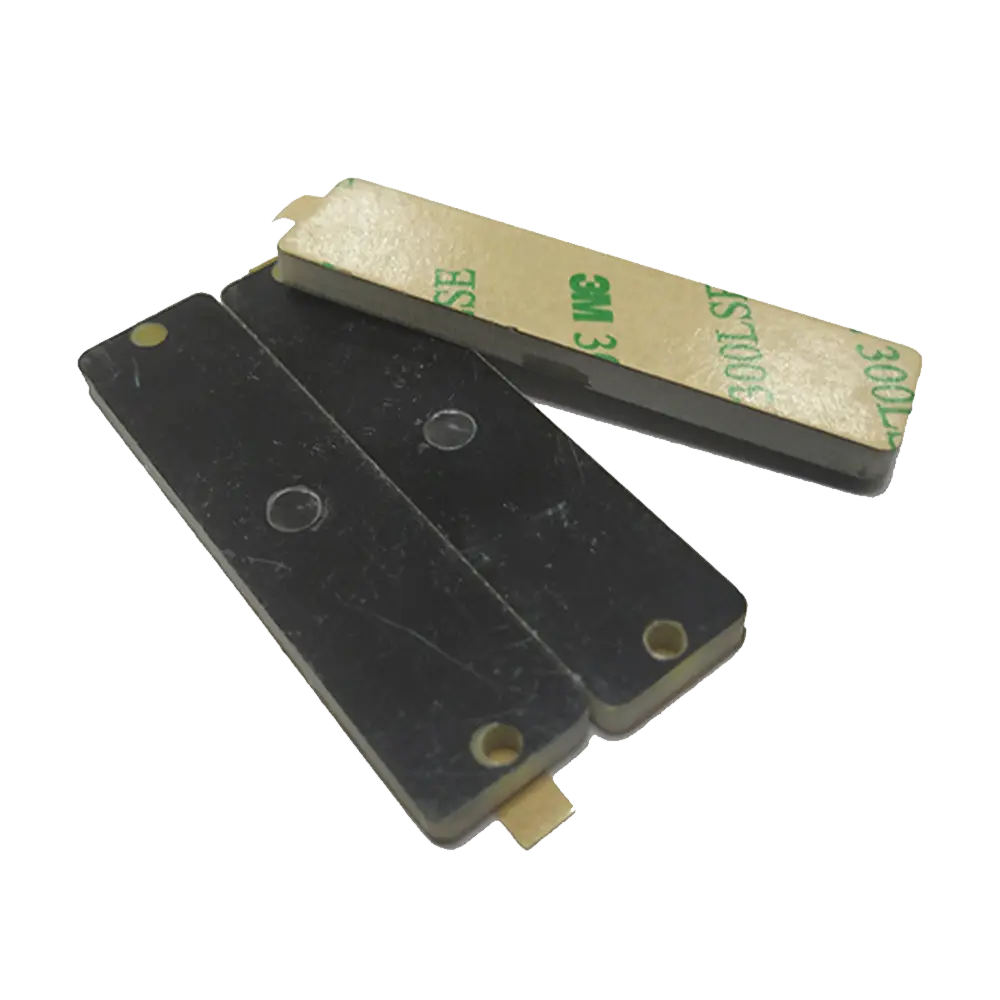

FSC-RT031 PCB anti-metal label is a label specially designed for metal and other complex environments. lt has the characteristics of long reading distance, high sensitivity and easy installation. lt is especially suitable for various metal environments and can be easily applied to metal asset equipment management, Gun management, medical equipment management, logistics and other occasions.
| Chip Features | Alien H3 | Impinj Monza R6-P |
| EPC | 96-EPC | 96-EPC |
| Chip memory | 512User Bits | 32User Bits |
| TID | 64bits | 48 bits (unique)+32 bits=96 bits |
| Access password | 32 bits | 32 bits |
| Kill password | 32 bits | 32 bits |
| Data storage time | 10 years | 10 years |
| Rewritable times | 100,000 times | 100,000 times |
| Physical Properties | |
| Physical Dimensions (WxLxH) | 60mm x 15mm x 3mm |
| Shell material | PCB, 3M glue |
| Color | black |
| Weight | 6g |
| Installation method | 3M Adhesive |
| Use Environment | |
| Degree of protection | IP65 |
| 工作温度 | -20ºC to +85ºC |
| Applications | Logistics, tobacco, metal shelves and metal goods management, firearms management, medical equipment management, 等 |
