GBeacon GB2112 is a battery powered beacon. It simultaneously supports iBeacon, Eddystone (e.g. URL, UID), AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames. Transmit distance up to 100m.

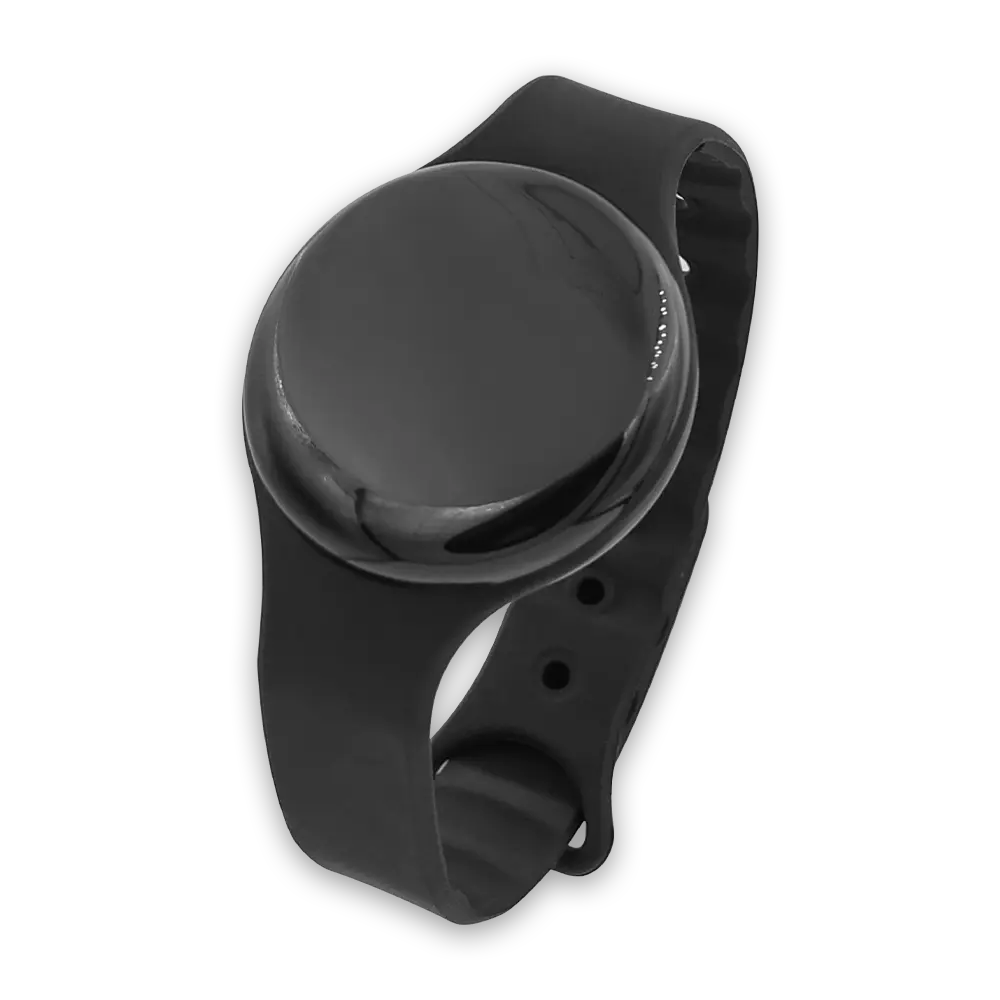

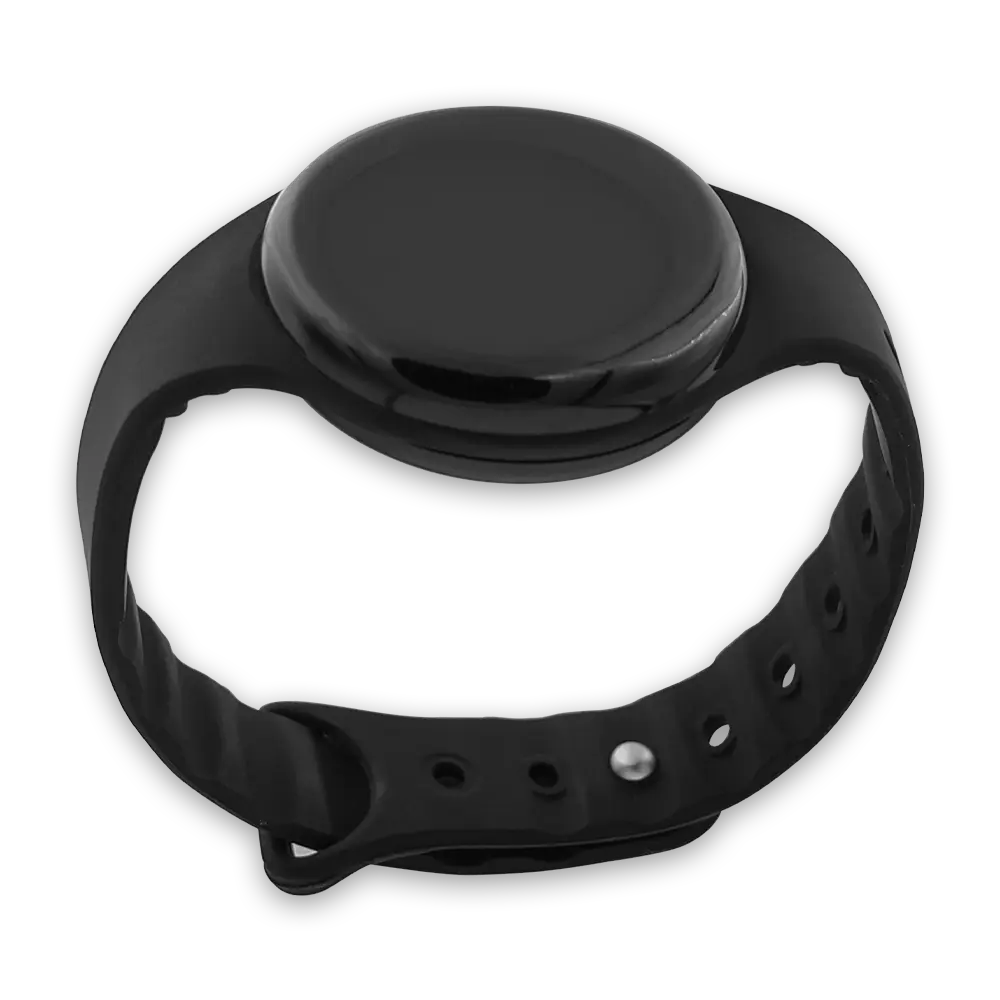

Designed with the wristband, it’s the best option for applications like Children’s Real Time Positioning ,Student Attendance ,Music Festival and so on.
| Item | Description |
| Advertising Format | Eddystone (URL/ UID/ TLM), iBeacon, AltBeacon |
| Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
| Advertising Interval | Default 1300 ms, range from 100 ms to 2000 ms |
| Security | Access password required, Default Pin Code 000000 |
| Max Number of Broadcast | 10 Slots configurable advertising frames |
| Default Broadcast Interval | 1300 ms for iBeacon & Eddystone |
| System Compatibility | iOS 7.0+, Android 4.3+ |
| Advertising Distance | Up to 100m (open area) |
| Firmware Upgrading | OTA (upgrade firmware over the air) |
| Item | Description |
| 芯片组 | TI CC2640R2F |
| Bluetooth Version | 蓝牙 5.1 |
| TX power | -23 dBm 到 +5 DBM |
| Antenna | Ceramic antenna |
| Power Supply | CR2032 |
| Battery Life | 1 Year (ADV Interval = 1300 ms; TX Power = 0 DBM) |
| G-Sensor | Optional |
| Material | ABS plastic |
| Color | Black, Green, Blue, Yellow, Red, Rose Carmine, or customized |

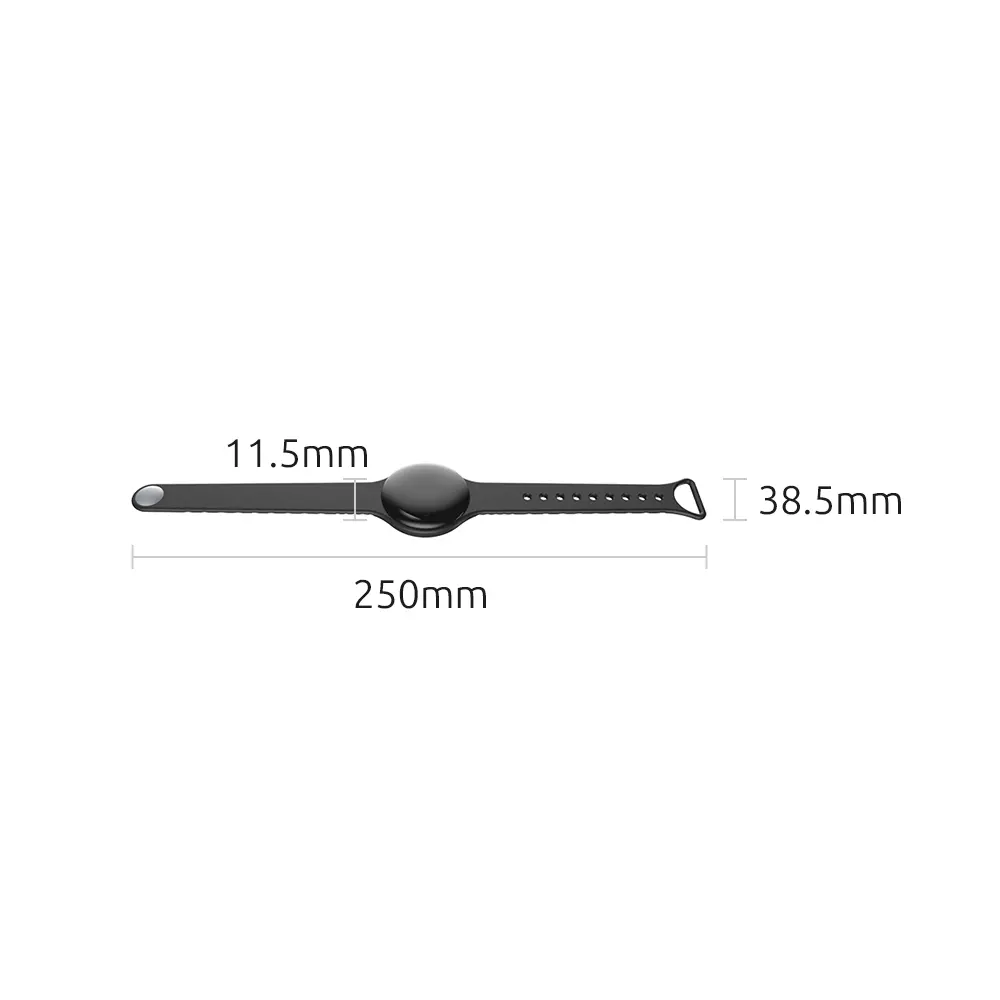

| Size | 250(L)*38.5(W)*11.5(H)mm |
| Net weight | 46.2 g |
| Protection | IP40 |
| 工作温度 | -20°C to +60°C |
